Wearable circuits printed directly onto human skin

Circuits directly onto the surface of human skin could monitor vital indicators

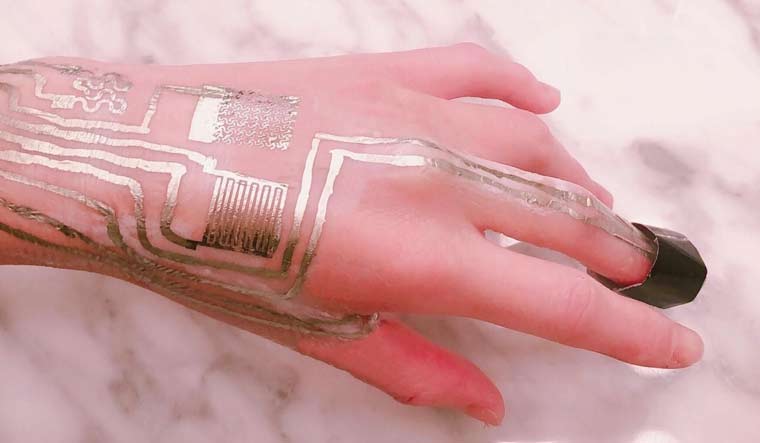

on-body-sensor-acs On-body sensors, such as electrodes and temperature sensors, were directly printed and sintered on the skin surface | Photo: ACS Applied Materials & Interfaces

In the near future, electronic circuits could be printed directly on to your skin to monitor health indicators, such as temperature, blood oxygen, heart rate and blood pressure, suggests a recent study.

Wearable electronics that augments memory, intellect, creativity, communication and physical senses are getting smaller, more comfortable and increasingly capable of interfacing with the human body. To achieve a truly seamless integration, electronics could someday be printed directly on people's skin.

Researchers reporting in ACS Applied Materials & Interfaces have safely placed wearable circuits directly onto the surface of human skin to monitor vital signs. The latest generation of wearable electronics for health monitoring combines soft on-body sensors with flexible printed circuit boards (FPCBs) for signal readout and wireless transmission to health care workers. However, before the sensor is attached to the body, it must be printed or lithographed onto a carrier material, which can involve sophisticated fabrication approaches.

To simplify the process and improve the performance of the devices, Peng He, Weiwei Zhao, Huanyu Cheng and colleagues wanted to develop a room-temperature method to sinter metal nanoparticles onto paper or fabric for FPCBs and directly onto human skin for on-body sensors. Sintering—the process of fusing metal or other particles together—usually requires heat, which wouldn't be suitable for attaching circuits directly to skin.

The researchers designed an electronic health monitoring system that consisted of sensor circuits printed directly on the back of a human hand, as well as a paper-based FPCB attached to the inside of a shirt sleeve.

To make the FPCB part of the system, the researchers coated a piece of paper with a novel sintering aid and used an inkjet printer with silver nanoparticle ink to print circuits onto the coating. As solvent evaporated from the ink, the silver nanoparticles sintered at room temperature to form circuits. A commercially available chip was added to wirelessly transmit the data, and the resulting FPCB was attached to a volunteer's sleeve.

The team used the same process to sinter circuits on the volunteer's hand, except printing was done with a polymer stamp.

The researchers made a full electronic health monitoring system that sensed temperature, humidity, blood oxygen, heart rate, blood pressure and electrophysiological signals and analysed its performance. The signals obtained by these sensors were comparable to or better than those measured by conventional commercial devices.
